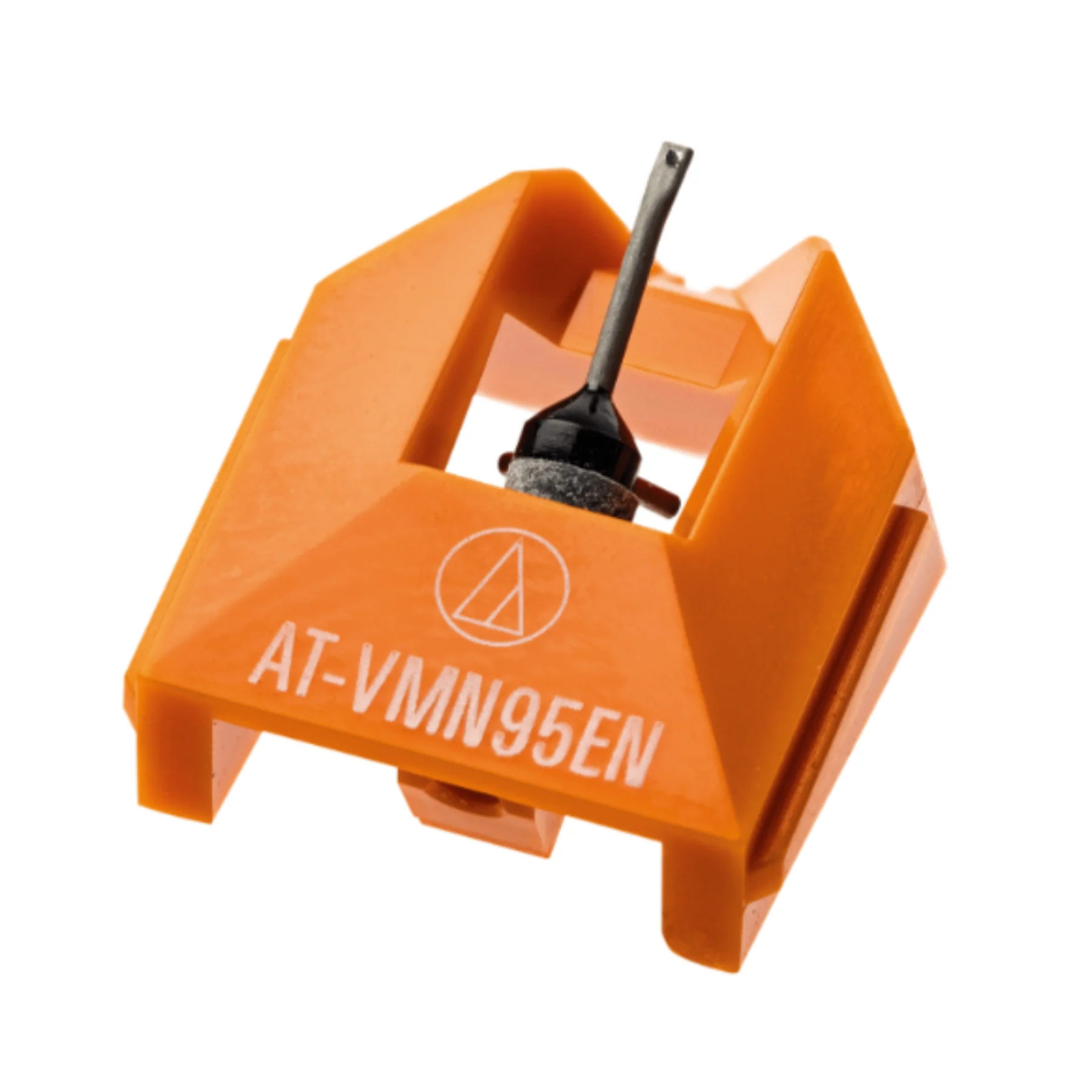

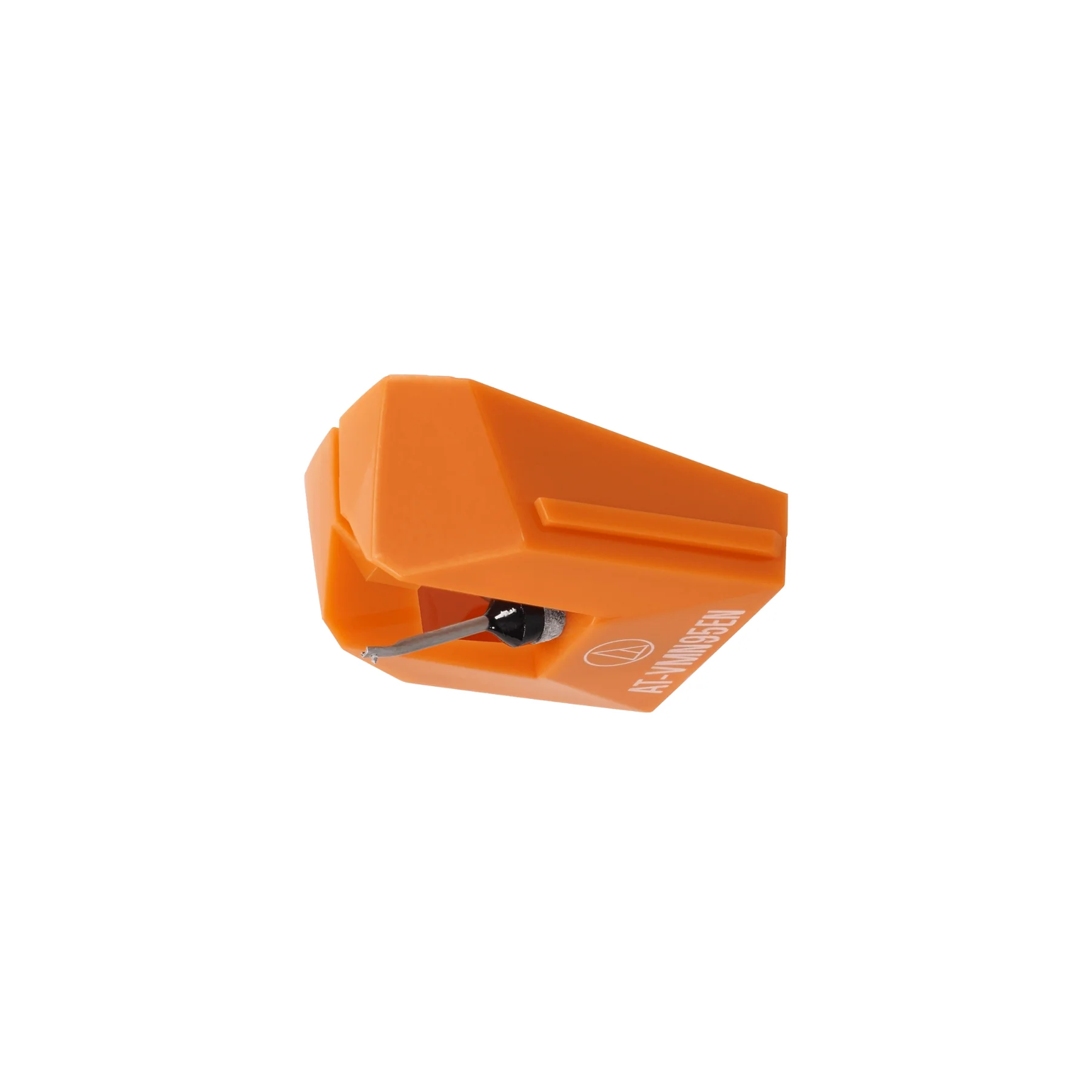

Audio Technica AT-VM95EN Replacement Stylus

Audio Technica AT-VM95EN Replacement Stylus

The Audio-Technica VM95 Series cartridge, equipped with a 0.3 x 0.7 mil elliptical nude stylus, seamlessly fits half-inch mount turntables, delivering exceptional audio quality with excellent channel separation and low distortion for an outstanding tonal experience. Its durable, low-resonance housing features threaded inserts, facilitating easy mounting to the headshell with just two screws – no nuts required. Adding to its versatility, since all VM95 Series cartridges share the same body, the stylus can be effortlessly replaced with any of the six interchangeable AT-VMN95 replacement styli.

Audio Technica AT-VM95EN Dual Moving Magnet Cartrdige Specs

• Frequency Response: 20-23,000 Hz
• Channel Separation: 22 dB at 1 kHz
• Vertical Tracking Angle: 23°
• Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
• Stylus Construction: Nude round shank
• Recommended Load Impedance: 47,000 ohms
• Coil Impedance: 3.3 k ohms (1 kHz)
• DC Resistance: 485 ohms
• Coil Inductance: 550 mH (1 kHz)
• Output Voltage: 3.5 mV (1 kHz, 5 cm/sec.)
• Output Channel Balance: 2.0 dB (1 kHz)
• Stylus Shape: 0.3 x 0.7 mil elliptical
• Cantilever: Aluminum pipe
• Static Compliance: 20 x 10 – 6 cm/dyne
• Dynamic Compliance: 7 x 10 – 6 cm/dyne (100 Hz)
• Mounting: Half-inch
• Cartridge Weight: 6.1g
• Dimensions: 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D
• Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver
• Model: AT-VM95EN
• Mounting Feature: Half-inch mount
• Recommended Load Capacitance: 100 to 200 pF
• Replacement Stylus: AT-VMN95EN
• Stylus Size: 0.3 x 0.7 mil
• Type: VM Stereo Dual Magnet
• Weight: 6.1 g (0.22 oz)
• Wire Used for Coil: T.P. Copper
