Kanto PMX900HD Pro Series Full Motion TV Mount

Kanto PMX900HD Pro Series Full Motion TV Mount

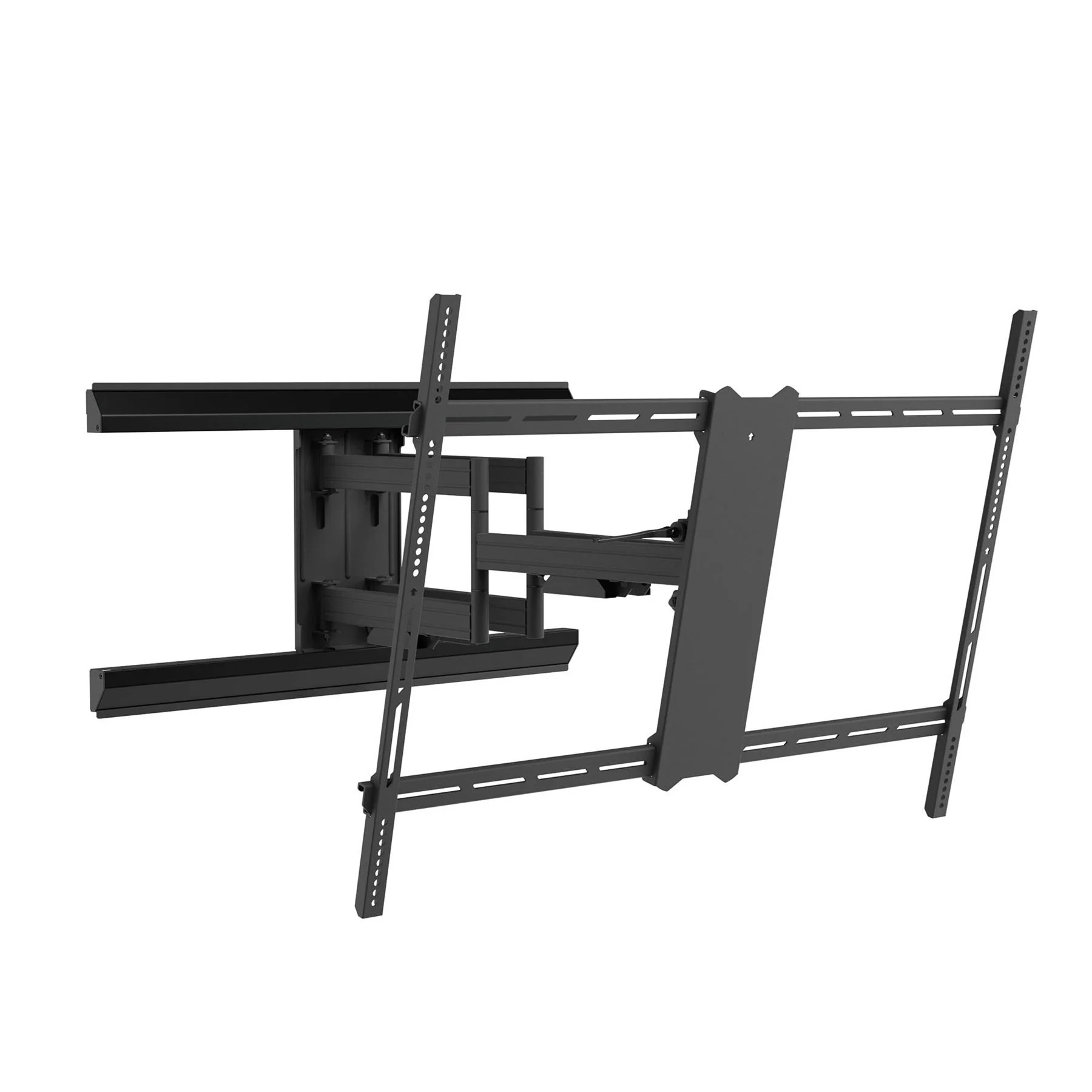

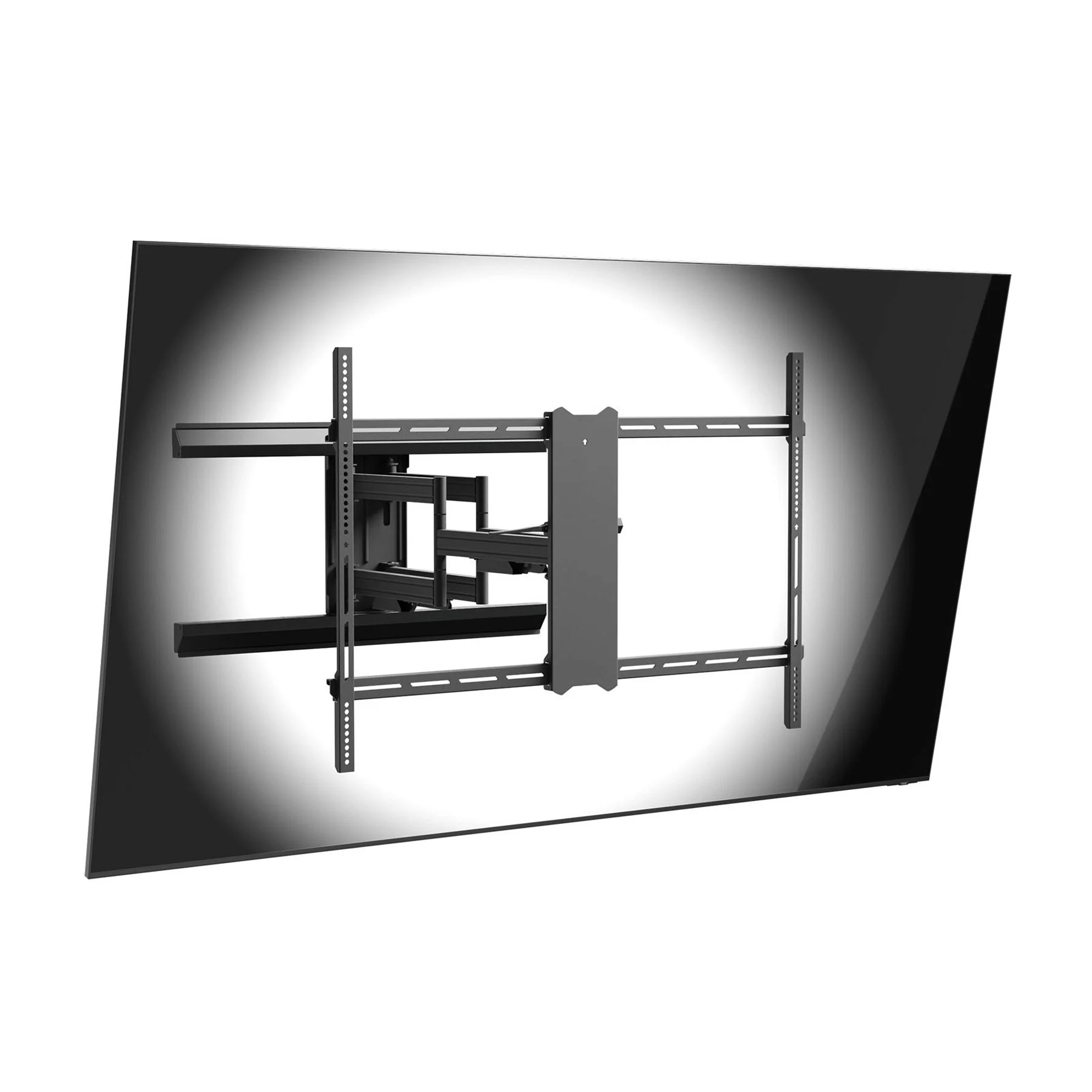

The Kanto PMX900HD Pro Series Full Motion TV Mount is engineered for extra-large displays, giving 65" to 140" TVs a secure, flexible, and refined wall-mounted installation. Built for serious home theater, commercial, and premium media room setups, this height-adjustable full motion TV mount supports up to 275 lb and accommodates wide VESA patterns from 200x100 to 1000x700. Its heavy-duty articulating design extends up to 33" from the wall, retracts to a slim 2.7" profile, and provides smooth swivel, toolless tilt, horizontal offset, and post-install height adjustment for precise screen placement. Integrated metal cable management, aluminum wall plate covers, solid steel construction, and included installation hardware help deliver a clean, professional-grade finished look.

What It's Good At:

• Supporting massive 65" to 140" displays up to 275 lb
• Fine-tuning TV placement after installation with 2" height adjustment and 22" horizontal offset

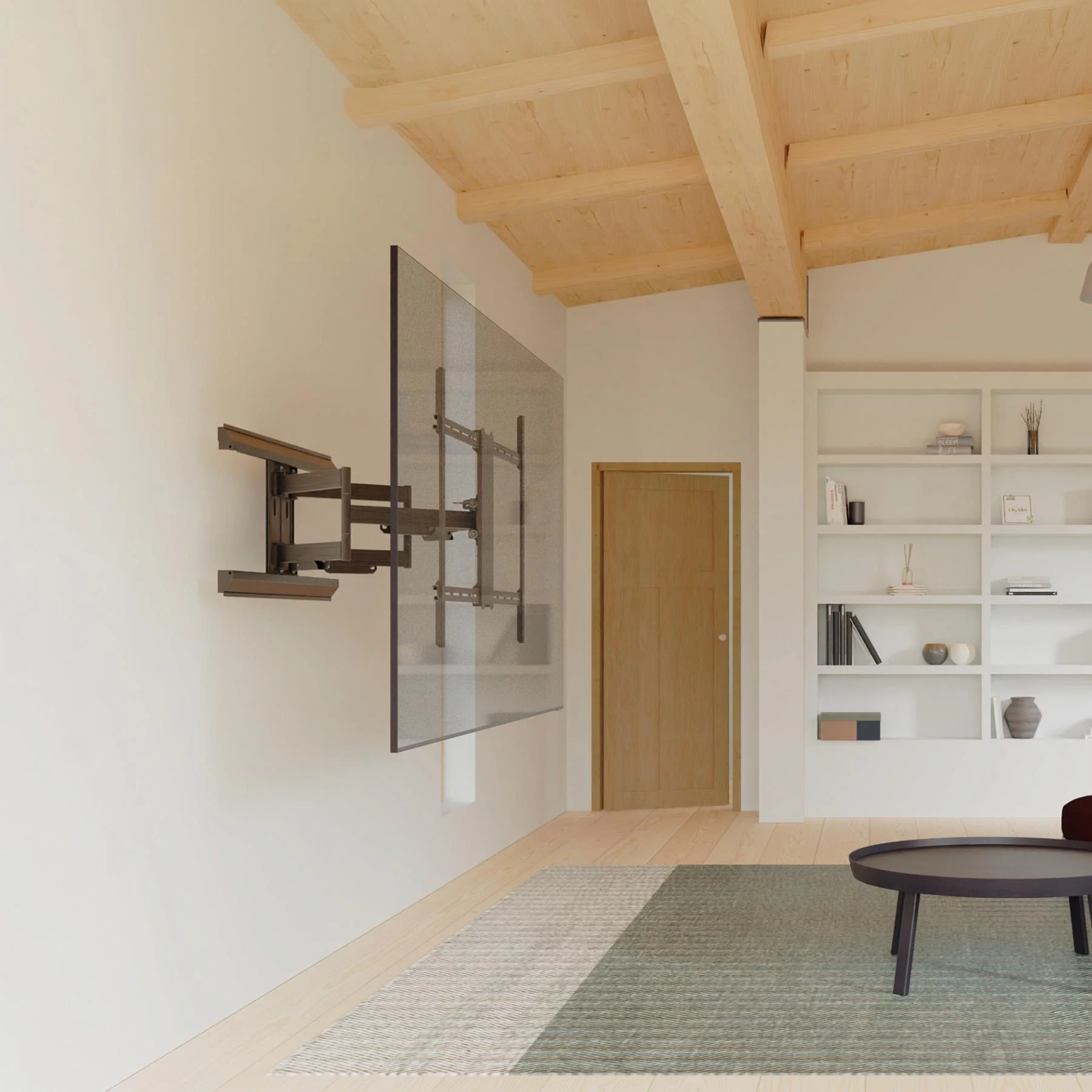

• Extending large screens up to 33" for better viewing angles and easier rear-panel access
• Reducing glare with a toolless +12° to -3° tilt mechanism
• Creating a clean, premium installation with cable management and aluminum covers
• Providing flexible viewing with up to ±90° swivel, depending on screen size and installation conditions

Kanto PMX900HD Pro Series Full Motion TV Mount Full Specifications:

• Brand: Kanto
• Model: PMX900HD
• Series: Pro Series
• Product Type: Height Adjustable Full Motion TV Mount / Full Motion TV Mount for Large Screens
• Compatible TV Sizes: Most 65" to 140" TVs
• Maximum Weight Capacity: 275 lb / 124.7 kg

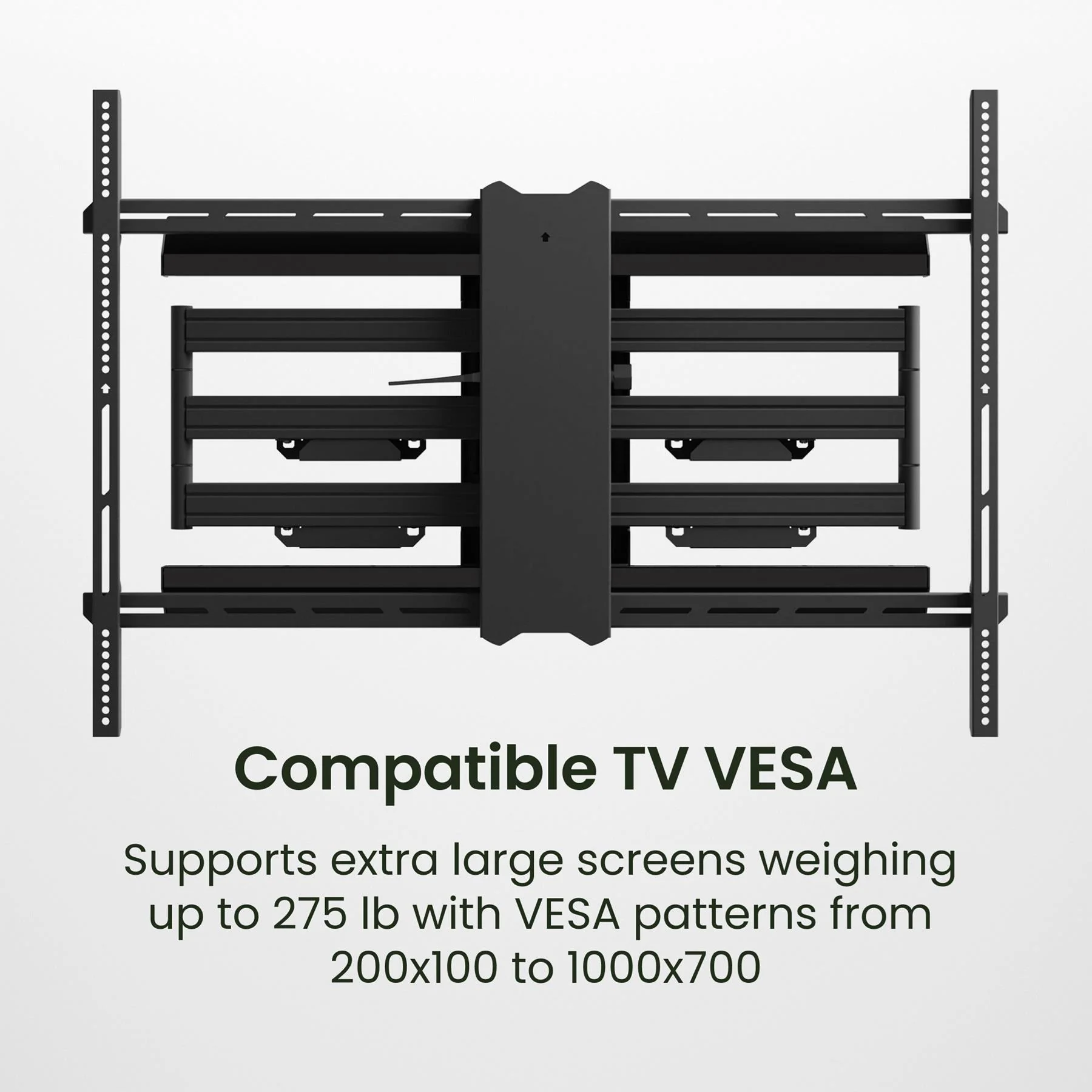

• VESA Compatibility: 200x100 to 1000x700
• Motion Type: Full motion
• Tilt Range: +12° to -3°

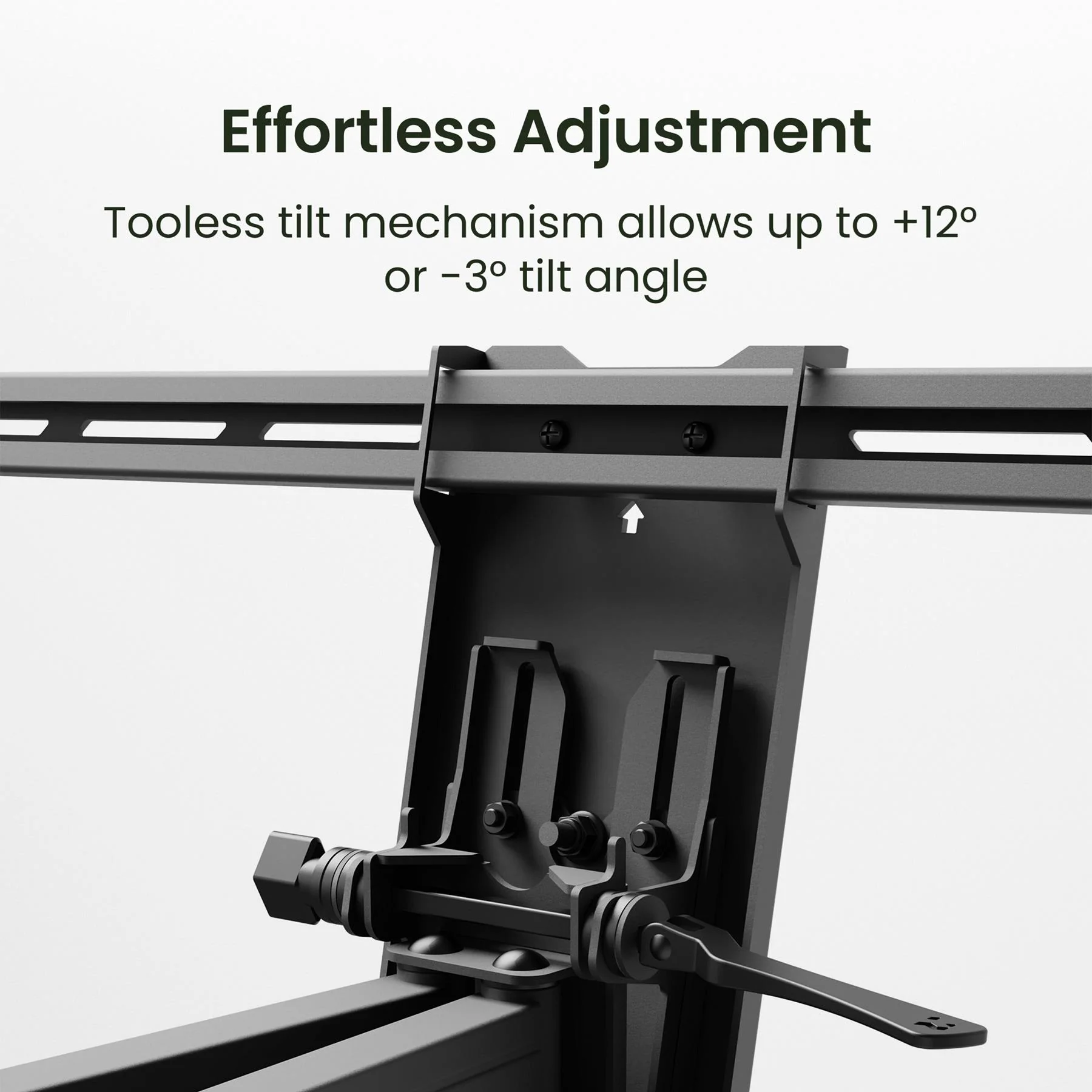

• Tilt Mechanism: Toolless tilt with cam-lever locking
• Swivel Range: ±90° left or right
• Extension Range: 2.7" to 33"
• Extension Range Metric: 6.8 cm to approximately 83.7 cm

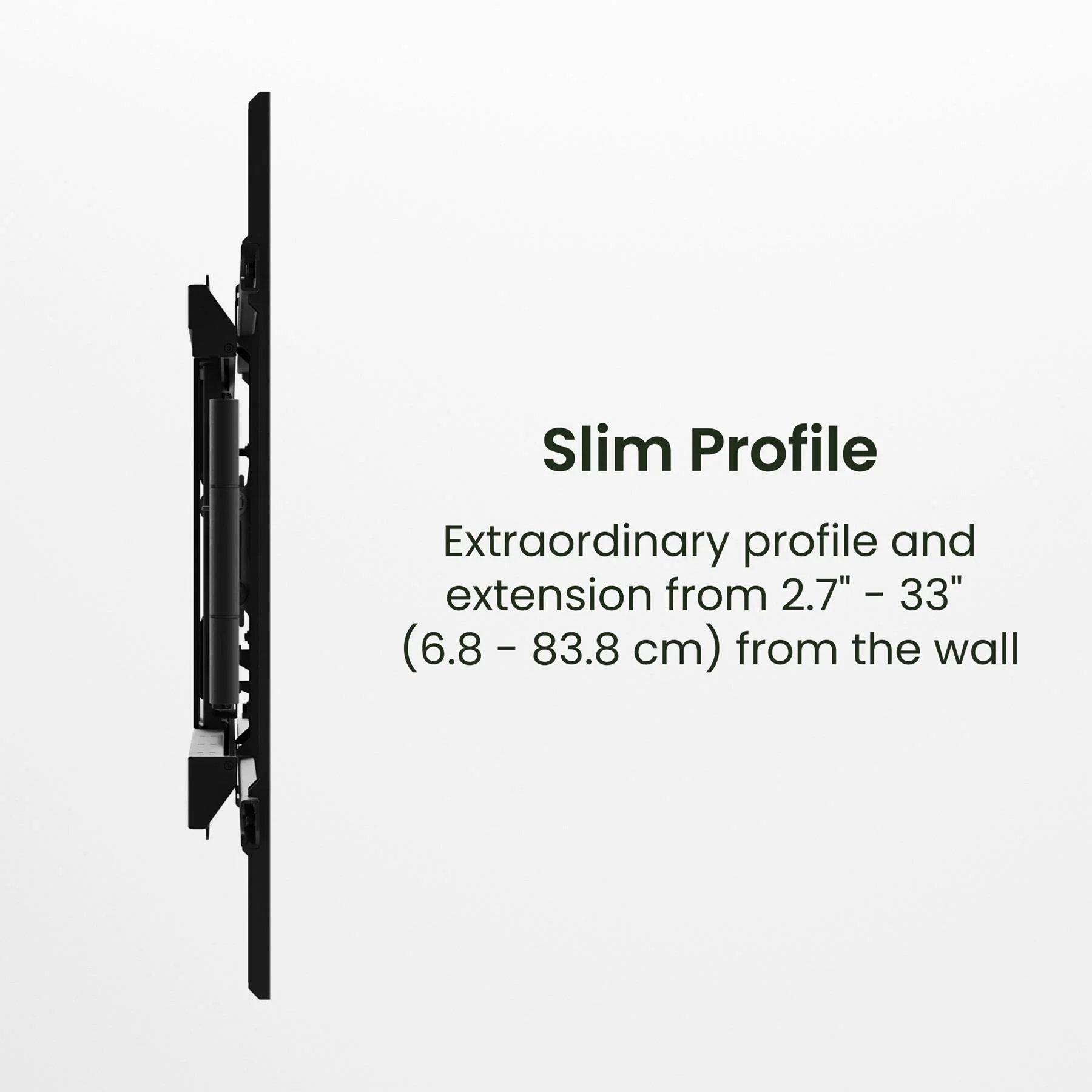

• Low-Profile Depth: 2.7" / 6.8 cm from wall
• Maximum Extension: 33"

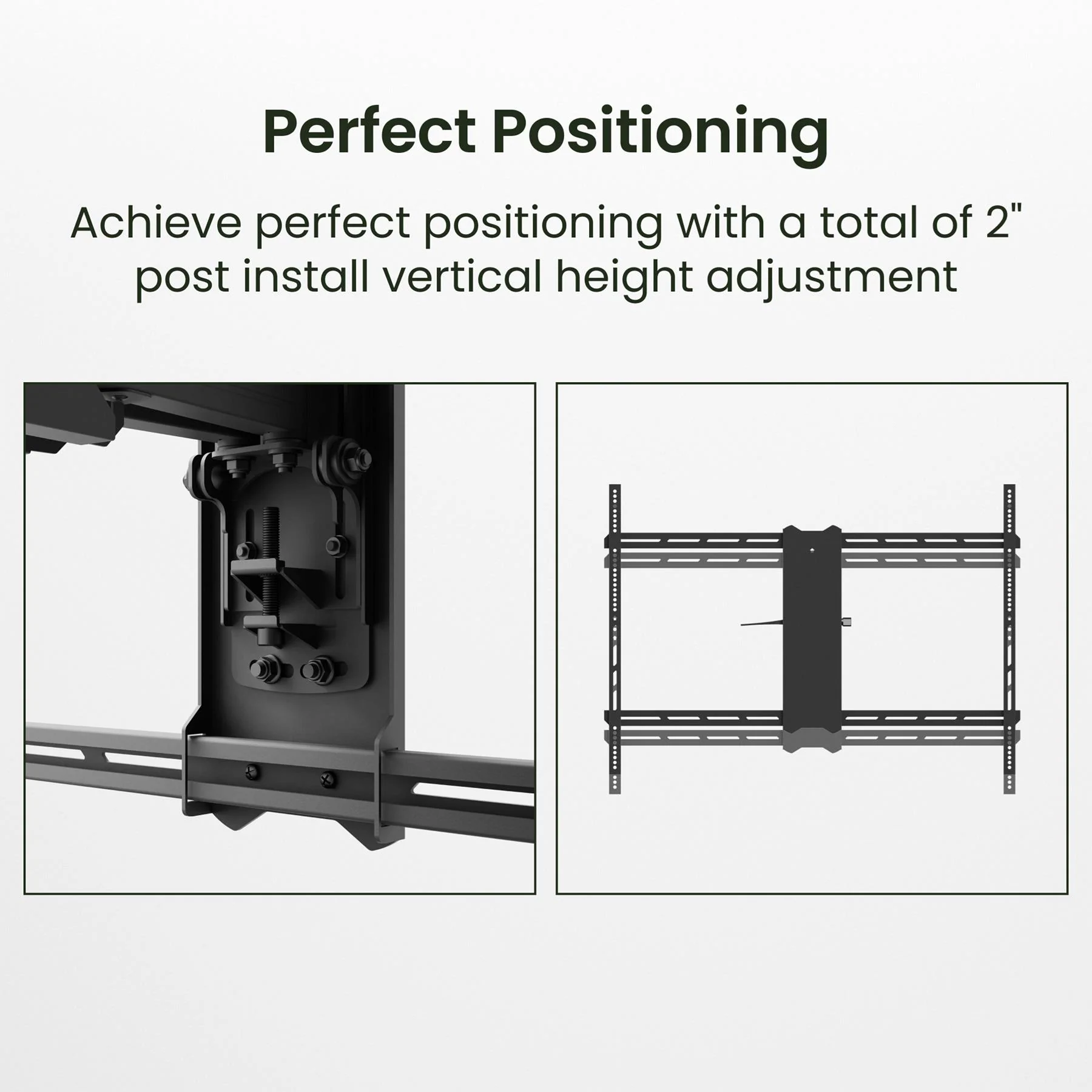

• Post-Install Height Adjustment: Up to 2" / 5.1 cm total

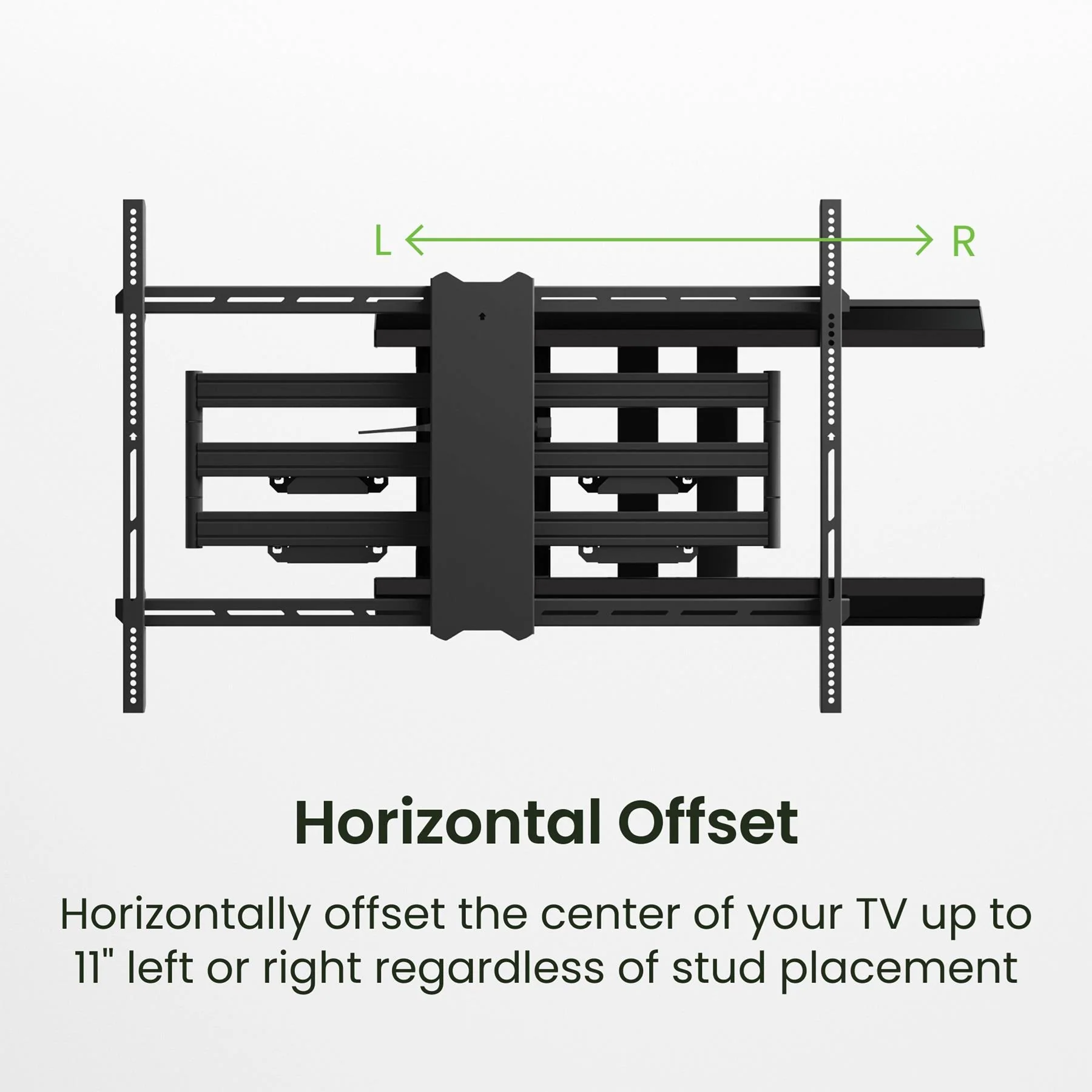

• Horizontal Offset: Up to 22" / 55.8 cm total
• Horizontal Leveling: Adjustable horizontal leveling
• Cable Management: Integrated metal cable management channels
• Wall Plate: 35" / 88.9 cm wall plate
• Stud Compatibility: Accommodates dual studs with up to 24" spacing; extra-wide plate can span up to three studs
• Wall Plate Covers: Full-length aluminum wall plate covers hide lag bolts and hardware
• Construction: Solid steel construction with premium aluminum covers
• Installation Hardware: Includes mounting hardware for wood stud and concrete installation
• Included Template: Paper wall template for marking pilot holes
• Included Documentation: Installation manual
• Included Adjustment Tool: Allen key included for easy adjustments
• Product Dimensions: 41.5" W x 29" H x 33" D
• Product Dimensions Metric: 105.5 x 73.6 x 83.8 cm
• Product Weight: 57.3 lb / 26 kg
• Shipping Box Dimensions: 44.6" x 21.7" x 4.9"
• Shipping Box Dimensions Metric: 113.3 x 55.2 x 12.5 cm
• Shipping Box Weight: 68.3 lb / 31 kg
• UPC: 800152726304
• Warranty: 10-year limited manufacturer’s warranty to the original purchaser
• Canadian Design: Yes
• Supplied TV Screws: M6 x 10 mm x4, M6 x 14 mm x4, M6 x 20 mm x4, M6 x 35 mm x4, M8 x 10 mm x4, M8 x 14 mm x4, M8 x 20 mm x4, M8 x 30 mm x4, M8 x 35 mm x4, M8 x 50 mm x4
• Supplied Spacers: 2.5 mm spacers x8, 5 mm spacers x8
• Supplied Washers: M6 washers x4, M8 washers x4, M10 washers x6
• Supplied Lag Bolts: M10 x 80 mm x6
• Supplied Concrete Anchors: x6
• Supplied Hex Keys: 3 mm, 5 mm, and 8 mm
• Supplied Cable Ties: x12
• Required General Tools: Socket set, Phillips screwdriver, pencil, level, measuring tape, drill
• Required Wood Stud Tools: Stud finder and 1/4" wood bit
• Required Concrete Tools: Hammer and 5/8" masonry bit
• Wood Stud Pilot Hole Size: 1/4" / 6.4 mm
• Concrete Pilot Hole Size: 5/8" / 16 mm
• Pilot Hole Depth: 3.2" / 80 mm
• Concrete Wall Requirement: Minimum 4" thick concrete wall
• Concrete Density Requirement: Minimum 2000 psi
• Installation Surface Requirement: Wall must support more than 5 times the combined weight of the TV and mount
• Use Limitation: Intended for mounting a VESA-compliant TV on a vertical surface
• Not Intended For: Steel stud walls or cinder block walls

Kanto PMX900HD Pro Series Full Motion TV Mount Q&A:

What size TVs does the Kanto PMX900HD support?

The PMX900HD is designed for most 65" to 140" TVs, making it ideal for extra-large displays in home theater, media room, and commercial installations.

How much weight can the PMX900HD hold?

This heavy-duty TV wall mount supports displays up to 275 lb, providing the strength needed for today’s largest premium screens.

Will this mount fit my TV’s VESA pattern?

The PMX900HD supports VESA mounting patterns from 200x100 up to 1000x700, offering wide compatibility with large-format TVs.

How far does the PMX900HD extend from the wall?

The mount extends up to 33" from the wall and retracts to a slim 2.7" profile for a clean, low-profile look when pushed back.

Can I adjust the TV after it has already been mounted?

Yes. The PMX900HD provides up to 2" of post-install height adjustment, up to 22" of horizontal offset, and adjustable horizontal leveling for precise final positioning.

How much tilt and swivel does the mount provide?

The PMX900HD offers +12° to -3° of toolless tilt and up to ±90° of swivel, helping improve sightlines and reduce glare.

What installation hardware is included?

The mount includes a paper wall template, installation manual, mounting hardware for wood stud and concrete installation, TV screws, spacers, washers, lag bolts, concrete anchors, cable ties, and hex keys.

Does the PMX900HD include cable management?

Yes. Integrated metal cable management channels help route wiring cleanly, while aluminum wall plate covers hide lag bolts and hardware for a polished installation.
