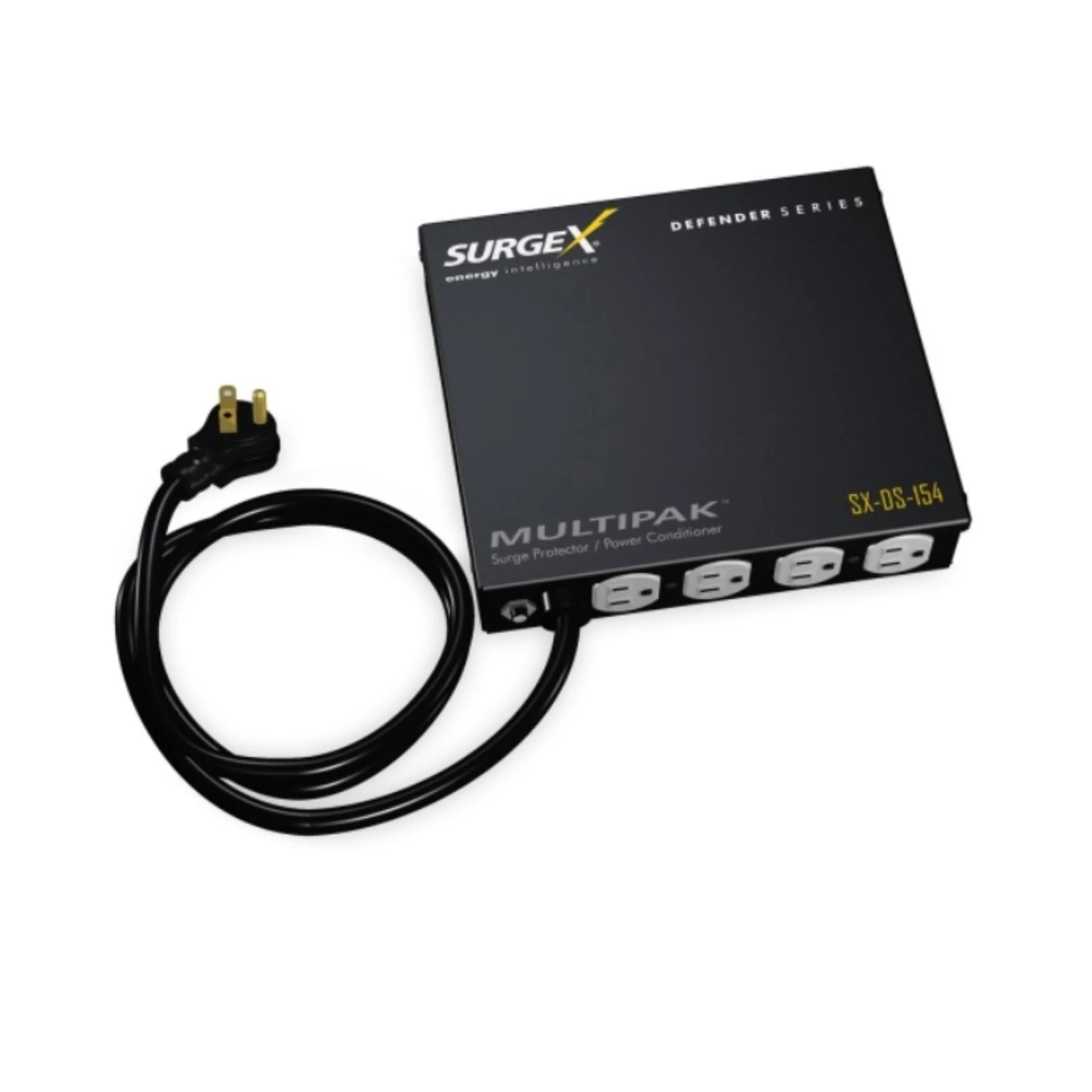

SurgeX SX-DS-154 Defender Series MultiPak Surge Protector and Power Conditioner with 4-Outlets - Clearance / Open Box
SurgeX SX-DS-154 Defender Series MultiPak Surge Protector and Power Conditioner with 4-Outlets - Clearance / Open Box
SX-DS-154 - Safeguard Digital Display with 4 Receptacle Configurations
The MultiPak safeguards digital equipment from surges, spikes, and electrical transients that can bring business to a halt. It's 360 degrees of power protection encompass multi-stage technology, catastrophic over/under voltage shutdown, inrush current elimination, and impedance-tolerant noise filtering to ensure equipment remains up and running without disruption.
The MultiPak's analytical software monitors, collects and analyzes electrical data, allowing service teams to understand power anomalies. The software identifies the potential cause of a problem and translates that data into recommendations on how to resolve the issue.
- Compact Design
- Wiring fault protection
- 4 receptacle configurations
- 6' line cord
- Mounting brackets
SPECIFICATIONS
- Load Rating: 15A
- Voltage Rating: 120V
- Power Requirement (no load): 4 W
-
EMI/RFI Filter:
- Normal Mode (50 Ohms load): >30dB, 80kHz-50MHz
- Common Mode (50 Ohms load): > 30dB, 70kHz-50MHz
- Under-Voltage Auto Shutdown: Adjustable from 80V to 95V, or disabled. Default Disabled.
- Over-Voltage Auto Shutdown: Adjustable from 135V to 160V. Default 150V.
- Over-Current Auto Shutdown: Circuit Breaker
- Over-Temperature Auto Shutdown: None
-
Measurement Accuracy:
- Voltage: ±2% Typical product accuracy between 40V and 180V
- Current: N/A
- Power: N/A
- Energy: N/A
- Temperature: N/A
- Network Port: No
- Serial Port: Custom Serial UART
- Temperature Sensor Input: None
- Auxiliary Relay Outputs: No
- Contact Closure Input: No
- Dimensions: 8.152" W Ă— 7.272" D Ă— 1.79" H
- Weight: 4.1 Ibs
- Temperature Range: 5C to 35C
- Humidity Range: 5% to 95% R.H. Non-condensing
-
Agency Listings:
- Conforms to UL Stds 1283 & 1449
- Certified to CSA Std C22.2 No. 8
TECHNICAL DESCRIPTION
The SX-DS-154 shall be a compact mountable unit in a magnetic shielding steel enclosure. It shall operate from 120 volts AC and have a 6-foot, grounded, 3-wire #14 line cord. There shall be 4 grounded AC receptacles.
Overall dimensions shall be 1.79" H Ă— 8.15" W Ă— 7.27" D. Weight shall be 4.1 pounds. The unit shall have remote turn-on capabilities enabled by a wired serial connection. The unit shall measure voltage and record power quality events in its internal memory. Remote turn-on and turn-off and retrieval of measurements and recorded events shall be activated by software. The SX-DS-154 shall have a load rating of 15 amps at 120 volts and provide EMI/RFI filtering, inrush current elimination, zero-cross switching, and catastrophic over/under-voltage shutdown.
